Mathieu Narrow Tip Orthodontic Needle Holder – Tungsten Carbide – Orthodontic Ligature Instrument

Mathieu Narrow-Tip Orthodontic Needle Holder – Tungsten Carbide

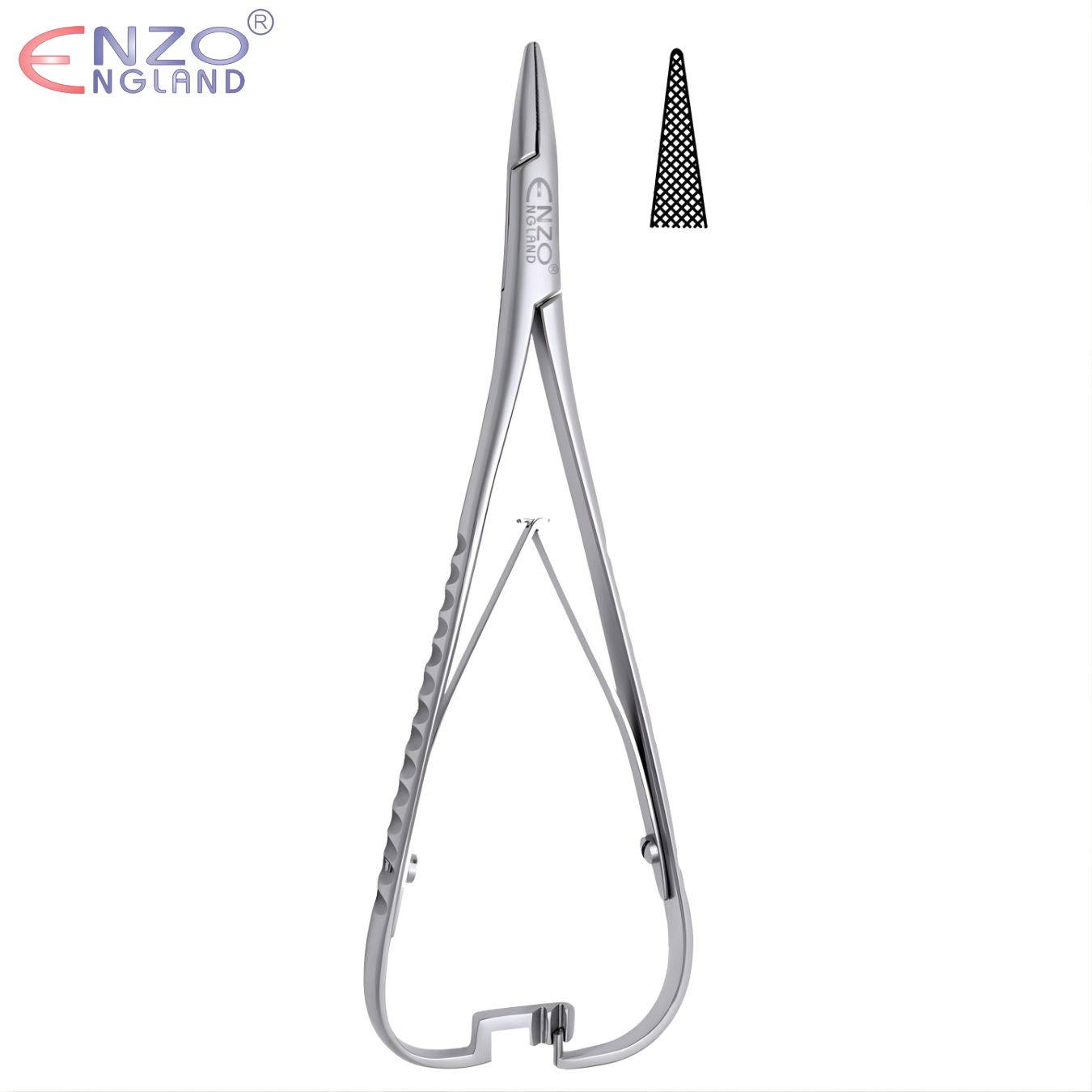

This Mathieu narrow-tip orthodontic needle holder is designed for controlled gripping, positioning and manipulation of suitable ligature materials during orthodontic procedures. The Mathieu-pattern spring handles provide a different hand action from ring-handled hemostats, while the narrow serrated jaws concentrate the gripping area for small components. It is particularly relevant when ligature wire or elastomeric modules need to be handled around brackets and archwires in restricted intraoral spaces.

The Enzo Dental listing specifies tungsten carbide (TC) gripping inserts, a double-spring mechanism, a narrow tip and a two-step lock. These are useful distinctions when choosing among orthodontic ligature pliers, needle holders and simple utility forceps. The existing material specification identifies 440A stainless steel; it is retained in the original technical table without adding an unsupported manufacturing-origin claim.

Key Features and Benefits

• Mathieu handle pattern: Spring-action plier handles support controlled positioning of ligatures.
• Narrow working jaws: Focus the gripping area on small orthodontic components.
• Serrated tip surfaces: The jaw texture helps hold compatible wire or ligature materials during adjustment.

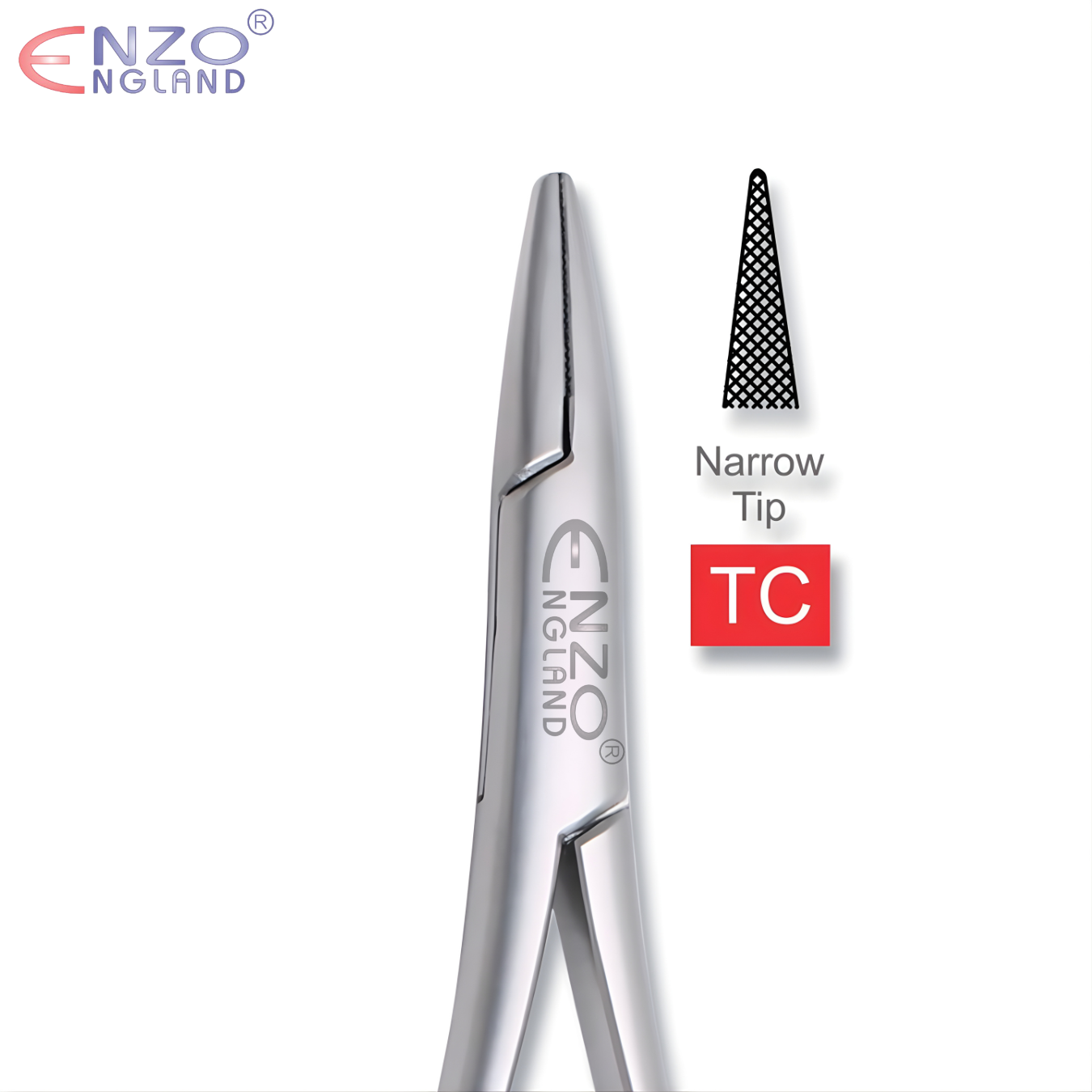

• Tungsten carbide inserts: TC contact surfaces are specified for this particular instrument.
• Two-step ratchet lock: Enables the operator to maintain a selected grip without constant hand pressure.
• Double-spring mechanism: The product's described spring arrangement assists opening and handling.
• Listed stainless-steel body: The material entry below records the original 440A specification.

Professional Applications

Mathieu orthodontic needle holders are commonly considered for tying, grasping and guiding ligature wire, as well as placing or managing suitable small orthodontic modules. A narrow-tip model may be chosen where clear access around a bracket or posterior tooth is important. Whether this particular instrument is appropriate for a surgical needle, specific wire gauge or elastomeric product depends on confirmed compatibility, not merely on the Mathieu pattern name.

Instrument Design and Handling

The spring and ratchet mechanism allow repeated gripping and release without a ring handle. The narrow serrated jaws should be aligned with the item being held, avoiding excessive force or use as a cutting instrument. Check the locking action and TC inserts as part of routine instrument inspection.

Technical Specifications

Cleaning and Sterilisation

Follow the manufacturer's validated cleaning and sterilisation instructions before clinical reuse.
